January 13, 2009 ·

Michael Reichmann


Canon 70-200mm f/2.8L IS

This field review is featured inIssue #3ofThe Luminous Landscape Video Journal

Stabilized Perfection

Photo courtesy Canon Inc.

Canon’s 70~200mm f/2.8L lens has long been regarded as one of Canon’s finest EOS optics. Many reviewers have called it the equal of primes within this focal range. I’ve owned this lens for a couple of years and have found it to be as good as its reputation. But, like many photographers, I waited for Canon to bring out anImage Stabilizedversion.

In the Fall of 2001 Canon ended the waiting with the announcement and shipment of the next generation 70~200mm f/2.8L IS lens. Unfortunately it has a street price some U.S. $750 more than its predecessor. How would they compare? And, would the new lens be worth the extra money?

Old Vs. New

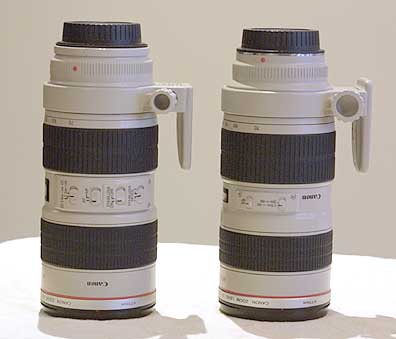

Cosmetically there is little difference between the lenses. (The new IS model is seen at left in the picture below). Of course the new lens has the usual IS controls. Canon claims that the new lens uses a second generation IS technology that permits the lens to be hand-held at as much as three stops slower shutter speed than without‚ a stop better than their IS technology in previous lenses. As with their other recent high-end IS lenses, the IS does not need to be disabled when the lens is tripod mounted.

The 70~200mm f/2.8L IS uses 23 elements, four of which utilize UD glass (seen in green in the illustration below). It features a rubber lens mount gasket making for a very water and dust-proof seal when used with either an EOS-1V or 1D.

 Illustration courtesy Canon Inc.

Performance & Stability

I ran an extensive series of tests of both the original lens as well as the new IS lens. These tests were done at the same time and using the same methodology as my tests of the newCanon EF 400mm f/4 DO IS USMlens.

200mm full-frame

Frankly, there’s little point in showing you the endless images of the lens tests done at various apertures and focal length. The two lenses tested essentially the same‚ at least within my ability to differentiate. But, I was most anxious to see how much of an edge the IS technology would provide.

The two frames below are at 100%, "Actual Pixels" magnification of the above framing. This magnification is equivalent to a 20" X 30" on-screen image. The first frame at1/40th secondwas taken with the non-IS lens and the second at1/8th secondwith the new IS lens.


Original 70~200mm f/2.8L lens. 200mm, 1/40th second‚ handheld

The frame above was taken with the non-IS lensat 200mm, hand-held at1/40th second. This was the slowest exposure that I could hand-hold that would produce a "decent" image. Not critically sharp, but, "OK".

New 70~200mm f/2.8L IS lens. 200mm, 1/8th second‚ handheld

The frame above was taken with the IS lensat 200mm, hand-held at1/8th second. Again, this was the slowest exposure that I could hand-hold that would produce a "decent" image. Not critically sharp, but, "OK".This is two stops slower than without IS. But, think about what we’re seeing here. A 200mm lens being hand-held at 1/8th of a second! That’s 4 stops slower than common wisdom suggests should be possible without IS technology. I don’t know about you, butI’mimpressed.

In The Field

Flight 67‚ Bosque del Apache

Canon D30 @ ISO 200 using a 70~200mm f/2.8L IS lens @ 85mm. 1/250 sec @ f/4. EFL= 136mm

I took the new IS zoom with me toBosque del Apache, and though Canon’s400mm DO ISlong lens saw most of the action I did use the zoom for several frames that worked out well.

Sunrise Flock‚Bosque del Apache

Canon D30 @ ISO 400 using a 70~200mm f/2.8L IS lens @ 160mm. 1/500 sec @ f/4. EFL= 256mm

The funny thing about using this lens is that because I’ve been using both the previous70~200mmand also the100~400mm ISthis lens just seemed like an old friend‚ the focal length and handling of the first with the IS capabilities of the second. I quickly forgot that I was supposed to be testing a new lens. It just seemed like part of my usual kit.

Is it Worth The Upgrade?

Night Flight‚ Bosque del Apache

Canon D30 with 70~200mm f/2.8L IS zoom at 70mm. 1/100sec @ f/2.8 @ ISO 400. EFL=110mm

The decision between the non-IS and the IS version of this lens is a no-brainer. The extra $750 gets you a lens with far greater versatility. It will get you shots that you otherwise will miss. If that’s not worth the extra money, I don’t know what is.

If you already own the original 70~200mm f/2.8L then the decision to upgrade is a bit tougher. You already know how good this lens is. If you can find someone to give you a good price for your old lens, and feel that adding IS will make sense for your style of shooting, then I believe it’s worthwhile.

As for me, once the lens been returned toCanon Canada, (who were kind enough to lend it to me for this location test), I needed to figure how to fit one within my budget. It didn’t take me long. A month later I had bought my own.

Conclusion: ‚ Recommended without reservation.

This field review is featured in an extensive video segment in
Issue #3ofThe Luminous Landscape Video Journal

If you enjoyed this article, as well as the hundreds of other tutorials, features,
reviews and essays on this site, you can support its continued growth
and discover an exciting new photographic resource by …

Avatar photo

Michael Reichmann is the founder of the Luminous Landscape. Michael passed away in May 2016. Since its inception in 1999 LuLa has become the world's largest site devoted to the art, craft, and technology of photography. Each month more than one million people from every country on the globe visit LuLa.
