Canon's VCM Technology: The Magnetic Force Behind Modern Lens Performance

Ever had your camera’s autofocus noise scare away that perfect wildlife shot? Canon’s VCM lenses focus in complete silence using electromagnetic motors that keep you invisible when it counts.

Discovering VCM

I was researching lenses for an upcoming shoot when I kept seeing this “VCM” designation on Canon’s newest RF glass. After digging deeper, I realized this technology changes how we think about lens performance.

Voice Coil Motor technology represents a departure from traditional lens design. Instead of gears and mechanical linkages moving your lens elements around, VCM uses pure electromagnetic force – that’s very precise inside your lens.

Think about the difference between sliding a heavy box across the floor versus having it glide on an air hockey table. You could push and wrestle with mechanical force, or you could use a frictionless system that responds to the lightest touch. That’s the difference between traditional lens motors and VCM.

How VCM Actually Works

Here’s the fascinating part. A Voice Coil Motor places a wire coil inside a powerful magnetic field created by permanent magnets.

The name comes from audio speakers – it’s the same technology that moves speaker cones to create sound, except here it moves lens elements with precision instead of air. When electrical current flows through that coil, physics takes over – specifically something called the Lorentz force.

This electromagnetic force moves the coil (and whatever lens element is attached to it) in a perfectly straight line along precision rails. No gears. No rotation. No mechanical friction. Just pure, controlled smooth movement.

Want the element to move the other direction? Simply reverse the electrical current. Need microscopic adjustments? Vary the current strength. It responds instantly and moves exactly as far as you tell it to.

Canon uses this electromagnetic magic in two critical areas: autofocus and image stabilization.

Silent Autofocus Performance

Canon’s new RF VCM lenses completely abandon their traditional Ultrasonic Motor approach. Instead of rotating mechanical elements, the focusing group moves in a straight line under electromagnetic control.

Take the RF 35mm f/1.4 L VCM. This lens uses dual voice coils to handle its substantial glass elements without any tilt or mechanical binding. The result? Super-fast focus acquisition with the kind of smooth, precise control that makes videographers happy.

But here’s something important to understand: VCM elements need constant power to stay in position. They don’t mechanically lock like traditional focusing systems. This means you might hear a soft “clunk” when you power down or remove the lens. That’s just the focus group settling into its rest position. Canon builds in protective cushioning, so this sound signals normal operation, not damage.

Image Stabilization Precision

If you’ve used any Canon lens with optical Image Stabilization over the past decade, you’ve already experienced VCM technology at work. Those tiny voice coils have been shifting stabilizer elements inside your lenses for years.

When your camera’s gyroscopes detect movement, VCM actuators immediately nudge the stabilizing lens group in the opposite direction. Because there are no gears involved, there’s no friction, no lag, and no sound. You get several stops of effective stabilization that works so smoothly you barely notice it.

The response time is essentially instantaneous. Shake your camera, and the stabilization system compensates before the movement can affect your image.

What This Means for Your Photography

Complete Silence Changes Everything Wedding photographers can work during quiet ceremonies without any lens noise. Wildlife shooters can track animals without spooking them. Street photographers can capture authentic moments without drawing attention. The RF 24mm f/1.4 L VCM operates so quietly that your subjects remain completely natural and unaware.

Precision That Expands Possibilities Handholding becomes viable at shutter speeds that previously required tripods. This technology could enable you to shoot handheld at 1/30s with a 200mm equivalent – something that would have been challenging with older stabilization systems.Efficiency You Can Count On Despite requiring constant position feedback, VCM systems use remarkably little power. You can leave image stabilization active all day without significant battery drain.

Canon’s Current VCM Lineup

Canon’s hybrid L-series primes showcase this electromagnetic autofocus technology:

RF 20mm f/1.4 L VCM – Ultra-wide coverage with silent focus makes this perfect for events and astrophotography where any noise could ruin the moment.

RF 24mm f/1.4 L VCM – Combines VCM rear focusing with Nano USM for floating elements. You get incredibly fast initial acquisition with smooth, precise fine-tuning.

RF 35mm f/1.4 L VCM – The original VCM lens that started Canon’s electromagnetic journey. Dual voice coils handle the heavy focus group with serious authority.

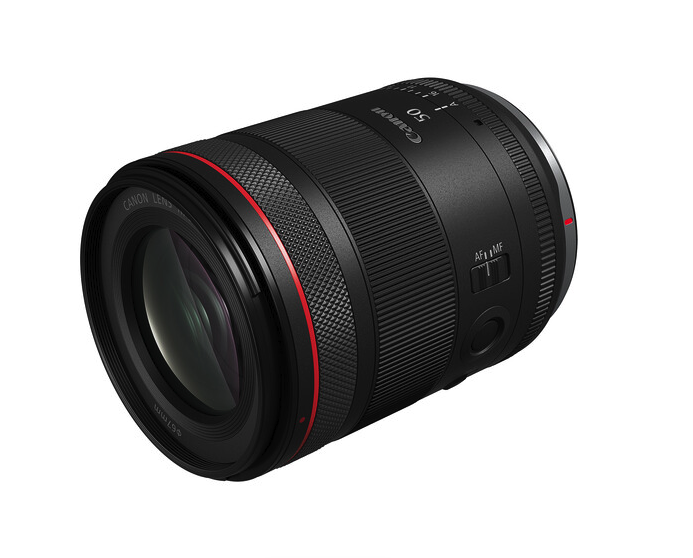

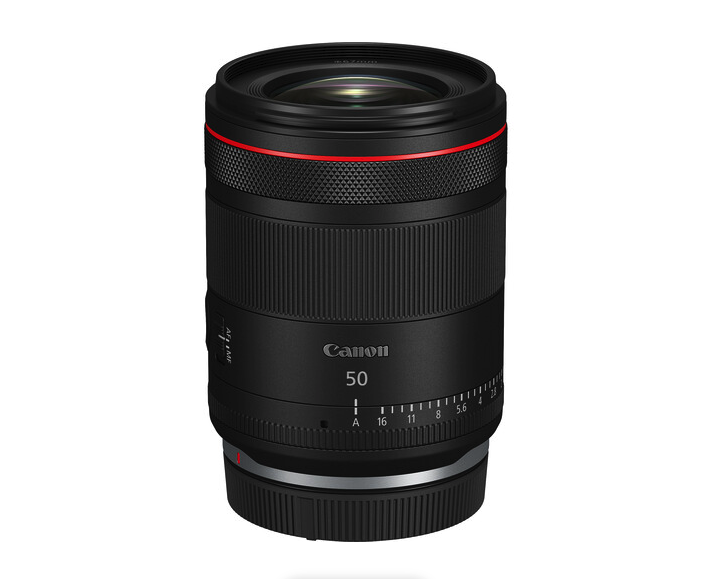

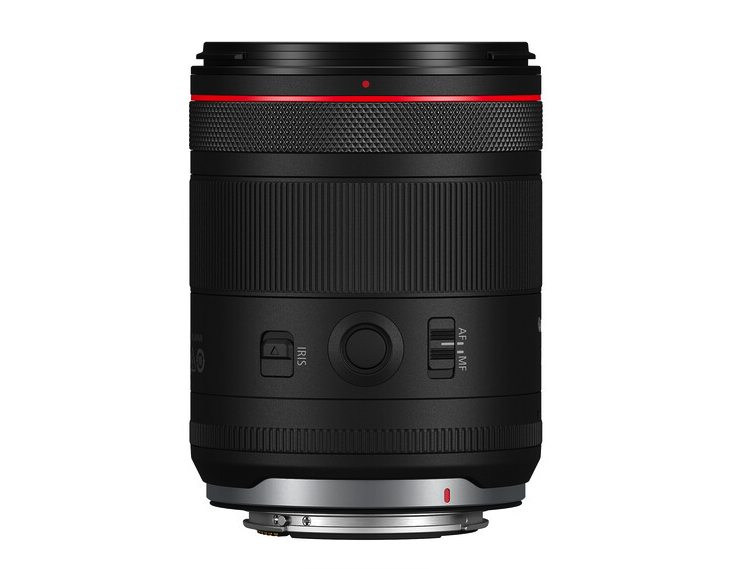

RF 50mm f/1.4 L VCM – Hybrid design using VCM for fine control and Nano USM for rapid initial focusing. This combination delivers both speed and cinema-quality precision.

These primes prioritize the VCM focusing system over optical stabilization. They rely on your camera’s in-body stabilization or higher shutter speeds for shake reduction.

What You May Not Know: Health Considerations

VCM lenses contain strong permanent magnets, and Canon includes pacemaker warnings in their documentation. This represents responsible engineering practice.

If you use a pacemaker or other implanted medical device, consult your physician before using VCM lenses. The magnetic field stays localized within the lens assembly, but caution makes sense. Practically, this might mean carrying your camera by hand rather than on a chest strap.

For everyone else, VCM technology poses no health risks. The magnetic fields stay contained, and the system produces no radiation or harmful vibrations.

How Canon Stacks Up

Canon certainly didn’t invent linear motor technology. Sony’s XD Linear Motors, Nikon’s Silky Swift VCM, and Fujifilm’s linear motor systems all use similar electromagnetic principles. The practical differences between these implementations are minimal – they all deliver fast, quiet focusing with precise control.

Where Canon excels is integration. The RF mount’s high data bandwidth allows sophisticated coordination between VCM-driven lens elements and camera autofocus systems. Combined with Canon’s dual-pixel sensor technology, this creates focusing performance that can change how you approach difficult subjects.

For my upcoming project, where I need both silent operation and continuous focus pulls the Canon will be perfect.

If you have these lenses, and have experience with them or an opinion on this please visit our forum: https://forum.luminous-landscape.com/index.php?topic=144948.0
